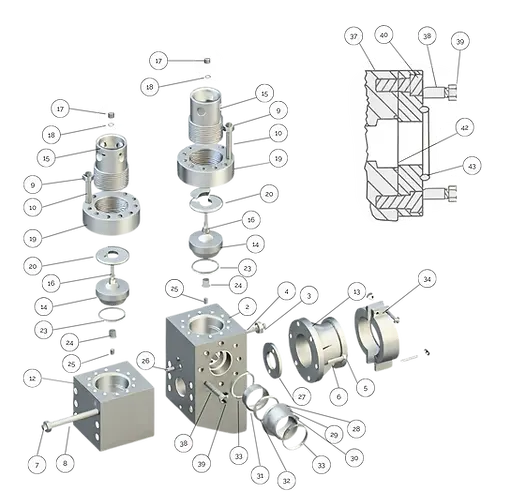

9-P-100
NATIONAL (“L” Shaped)
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
*Not shown
AMP Part No.
A-1293240
A-1293241
A-6300200
A-2408030
A-6300160
A-2408018
A-6300241
A-2408034
A-6300220
A-2408019
A-1290338
A-1290339
A-1293165
A-1290174
A-1290307
A-1290178
A-6300160
A-1290315
A-1290308
A-1290376
A-1290179*
A-1290181*
A-1540126
A-1292140
A-1292141
A-6511416
A-1290357
A-1290342
A-7000305-11
A-7619050
A-1290343
A-2410031-348
A-2410031-427
A-1293166
A-1590051*
A-1293243
A-1293244
A-2402560
A-6300200
A-7006606
A-1290344*
A-1290345
A-6908033
Description
Discharge Module, Studded (Included Items 2 – 10)
Discharge Module, Only
Nut – Frame
Stud – Frame
Nut – Liner Bushing
Stud – Liner Bushing
Nut – Suction to Discharge Module
Stud – Suction to Discharge Module
Nut – Threaded Ring
Stud – Threaded Ring
Suction Module, Studded (Included Items 9, 10, 12)
Suction Module, Only
Bushing – Liner
Seal Retainer
Valve Cover
Screw – Wedge Adjusting
Nut – Wedge Adjusting
Washer – Wedge Adjusting
Threaded Ring
Wedge Assembly (Included Items 21 – 22)
Wedge, Set
Spring – Wedge Retaining
Gasket – Valve Cover
Holder – Valve Guide
Insert – Valve Guide
Pin, Dowell
Plate – Wear
Connector – Discharge
Screw, Hex Head
Washer, Lock
Adapter – Discharge Connector
Packing, Rectangular
Packing, Rectangular
Clamp – Liner
Seal – Suction Manifold
Spacer – Discharge, Studded (Included Items 37 – 39)
Spacer – Discharge
Stud – Discharge Spacer
Nut – Discharge Spacer
Capscrew
Seal – Module, Wear Plate
Seal – Discharge Spacer
Ring, Oval Joint
Qty. per Pump
3
3
24
24
18
18
18
18
72
72
3
3
3
6
6
6
6
6
6
6
6
6
6
6
6
6
3
2
6
6
2
2
4
3
3
2
2
16
16
16
6
2
2
OEM Part No.
1293240
1293241
6300200
2408030
6300160
2408018
6300241
2408034
6300220
2408019
1290338
1290339
1293165
1290174
1290307
1290178
6300160
1290315
1290308
1290376
1290179*
1290181*
1540126
1292140
1292141
6511416
1290357
1290342
7000305-11
7619050
1290343
2410031-348
2410031-427
1293166
1590051*
1293243
1293244
2402560
6300200
7006606
1290344*
1290345
6908033
Disclaimer:
American Mud Pumps is an independent supplier of aftermarket fluid ends and components. The products listed are manufactured to be 100% interchangeable with OEM parts from brands such as National, LEWCO, EMSCO, Gardner Denver, Ideco, and others. All references to OEM names, trademarks, part numbers, or models are for identification and compatibility purposes only. American Mud Pumps is not affiliated with, sponsored by, or endorsed by the respective OEMs.
