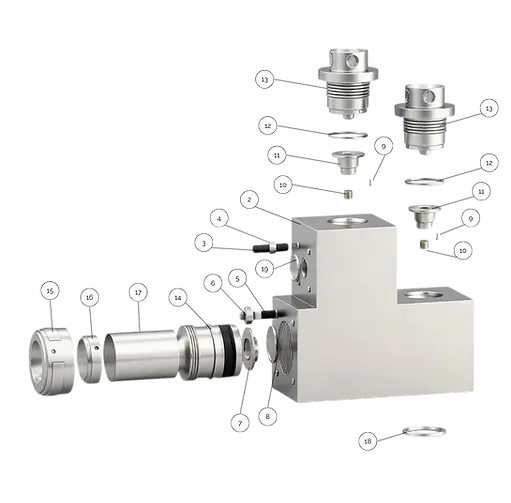

A-850/1100/1400/1700-PT

OILWELL COMPATIBLE

Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
17
18
19
*Not shown

AMP Part No.
A-10-300-181

A-49-001-292
A-75-511-754
A-49-002-837
A-75-510-126
A-10-300-184
A-20-100-008
A-75-632-234
A-20-200-004
A-10-300-004
A-10-300-011
A-10-300-005
A-10-300-183
A-10-303-092
A-10-300-182
A-10-300-185
A-10-303-091
A-10-300-186
A-10-300-201
A-99-609-345

Description
Fluid End, Studded
Fluid End, Only
Stud – Discharge Manifold
Nut – Discharge Manifold
Stud – Frame
Nut – Frame
Wear Plate – Liner
Gasket – Liner Wear Plate
Cap Screw, Self Locking
Valve Guide Bushing
Valve Guide
Gasket – Valve Cover
Valve Cover
Liner Adapter
Nut – Liner Adapter (A850-PT, A1100-PT only)
Nut – Liner Adapter (A1400-PT, A1700-PT only)
Spacer Ring – Liner
Centering Sleeve – Liner (A850-PT, A1100-PT only)
Centering Sleeve – Liner (A1400-PT, A1700-PT only)
Seal – Suction Manifold
Seal – Discharge Manifold

Qty. per Pump
3
3
12
12
12
12
6
6
24
6
6
6
6
3
3
3
3
3
3
3
3

OEM Part No.
10-300-181

49-001-292
75-511-754
49-002-837
75-510-126
10-300-184
20-100-008
75-632-234
20-200-004
10-300-004
10-300-011
10-300-005
10-300-183
10-303-092
10-300-182
10-300-185
10-303-091
10-300-186
10-300-201
99-609-345

High-pressure mud pump fluid end designed for triplex pump systems and oilfield drilling applications, compatible with a wide range of industry models including NOV F-1000, NOV FD-1600, NOV 12-P-160, NOV 14-P-220, Gardner Denver PZ-1600, PZ-9 and PZ-8, Cameron CMP-1600 and CMP-2200, Drillmec 12T1600 and 14T2200, BOMCO F-1600 and F-1600HL, Continental Emsco FC-2200, Weatherford MP-10 and MP-16, Honghua HHF-1600, Oilwell A-1700-PT, and American Mud Pumps AMP-2200L and AMP-1600L. This fluid end assembly includes an API-compatible fluid end module and fluid end block engineered for continuous duty in harsh environments. The design supports fluid end valves and seats, durable mud pump liners, a fluid end discharge flange and suction manifold, providing rugged performance, premium fluid end parts, and long-lasting fluid end components for demanding drilling rigs. This American-made fluid end is suitable for high-pressure offshore drilling, best-in-class oilfield rigs, and OEM or aftermarket

Descargo de responsabilidad:
American Mud Pumps es un proveedor independiente de componentes y extremos de fluidos para el mercado de repuestos. Los productos que se muestran están fabricados para ser 100 % intercambiables con piezas originales de marcas como National, LEWCO, EMSCO, Gardner Denver, Ideco y otras. Todas las referencias a nombres, marcas comerciales, números de pieza o modelos de fabricantes de equipos originales (OEM) se utilizan únicamente con fines de identificación y compatibilidad. American Mud Pumps no está afiliada, patrocinada ni avalada por los respectivos fabricantes de equipos originales.
